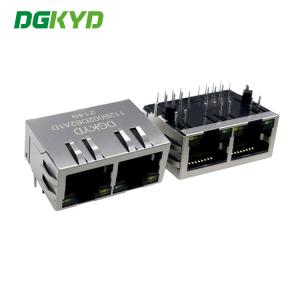

Low Profile 1x2 Cat6 RJ45 Multiple Port Connectors DGKYD112B002DB2A1D

Brand Name : DGKYD

Model Number : DGKYD112B002DB2A1D

Certification : RoHS/CE/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs per day

Delivery Time : 7-14days

Packaging Details : 1080pcs/carton

Product Name : RJ45 ethernet jack

Housing Material : PBT Black

Number of Ports : Multiport

Clamp direction : TAB-DOWN

Gilded : 6U

Gender : Female

LED option : Green/Yellow

Orientation : 90° Angle (Right)

Product standard : Meets IEEE 802.3 specification

Contact Now

Low Profile 1x2 Cat6 RJ45 Multiple Port Connectors DGKYD112B002DB2A1D

RJ45 Cat6 connector Dual port Tab down 100/1000/ Base-T sinking low profile 1x2 RJ45 connector DGKYD112B002DB2A1D

Specification

Part Number DGKYD112B002DB2A1D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option With LED
LED Color Yes, L-Green/ R-Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  multi Port Number of Positions  8
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Low Profile 1x2 Cat6 RJ45 Multiple Port Connectors DGKYD112B002DB2A1DLow Profile 1x2 Cat6 RJ45 Multiple Port Connectors DGKYD112B002DB2A1DLow Profile 1x2 Cat6 RJ45 Multiple Port Connectors DGKYD112B002DB2A1D

Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.
Q2:How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welcome.
Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4:Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
