Cat5 RJ45 Ethernet connector with common mode choke , G/Y LED

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-003ANL

Price : Please contact us to get the latest price.

Gender : Female RJ45

LEDS/EMI fingers : For optional

Product Name : RJ45 Ethernet Connector

Feature : High performance,with magnetics & LED

RJ45 Suitable : for CAT5&6 Ethernet Cable or UTP

Application : lan,bridge,PC,router,usb hub network rj45 and all ethernet devices

LED Color : Green/Yellow

Operating temperature : - 40 ℃ ~ 85 ℃

Storage temperature : Storage temperature

Contact Now

Cat5 RJ45 Ethernet connector with common mode choke , G/Y LED

Part Number
KRJ-003ANL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Down
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
Without Panel Stops
Shielded
 Metal shielded
Applies To 
Printed Circuit Board
Performance Speed
10/100 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

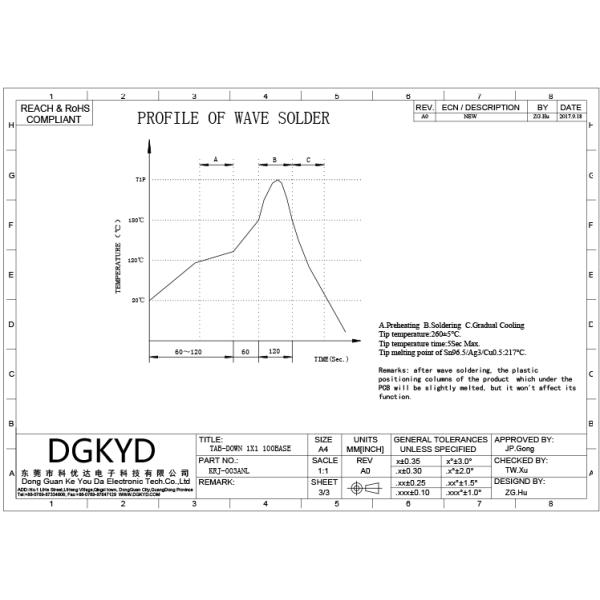

► Product Drawing

Cat5 RJ45 Ethernet connector with common mode choke , G/Y LEDCat5 RJ45 Ethernet connector with common mode choke , G/Y LEDCat5 RJ45 Ethernet connector with common mode choke , G/Y LED
